H01 - Telescopic seatpost

Integrated performance. Proven technology.

The Eightpins H01 combines maximum functionality, intuitive operation, and perfect integration. For more control, more comfort—and a bike that's ready for any trail.

Bild zeigt eine Eightpins H01 Sattelstütze von der Seite, verbaut in einem Rotwild RX375.
Bild zeigt eine Eightpins H01 Sattelstütze verbaut in einem Rotwild 375 Bike mit einem Kornfeld im Hintergrund.

Integrated hydraulic seatpost – performance that inspires

  • Integrated Eightpins design meets proven hydraulic technology
  • Up to 212 mm continuous stroke
  • Hydraulically lockable gas spring for precise control
  • Height adjustment via compact lever on the seatpost head
  • Bowden cable does not need to be moved within the frame – no friction, no damage

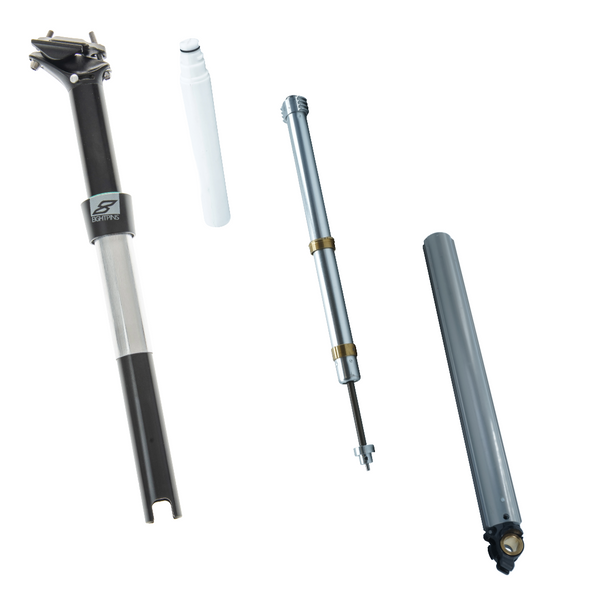

Bild zeigt die Hauptbestandteile einer zerlegten Eightpins H01 Sattelstütze.

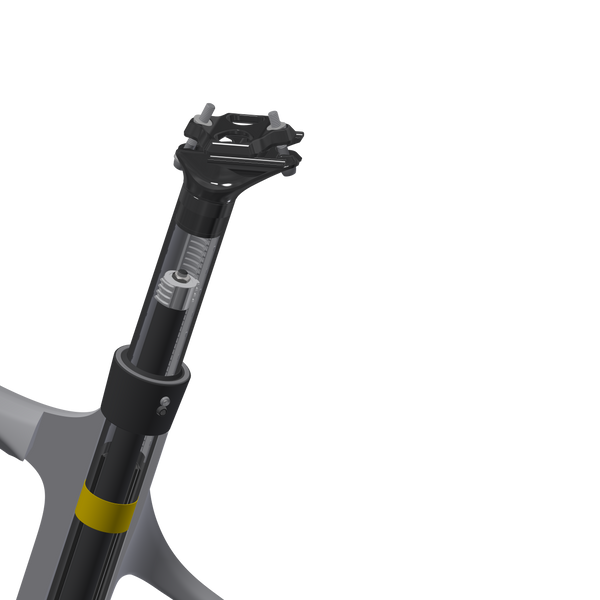

Bild zeigt die eine Schnittbild von der Höhenverstellung der EIghtpins H01 Sattelstütze.

Mechanical height adjustment – Precise and robust

  • Glass fiber reinforced inner tube for maximum stability
  • Height adjustment via rotating mechanism under the saddle head
  • Direct coupling of the gas spring to various positions
  • Reliable, maintenance-friendly design

Adjust and Go - Adjusting the saddle height

  • Adjust height as in a car
  • Lever up - adjust height - lever down - done
  • Saddle remains oriented - No alignment necessary
  • No tools required
  • No inhibition due to excessive clamping
  • Bowden stays put
  • No bent Bowden cables due to shifting
Video zeigt wie die Einstellung der Sattelhöhe bei einer Eightpins Sattelstütze funktioniert.

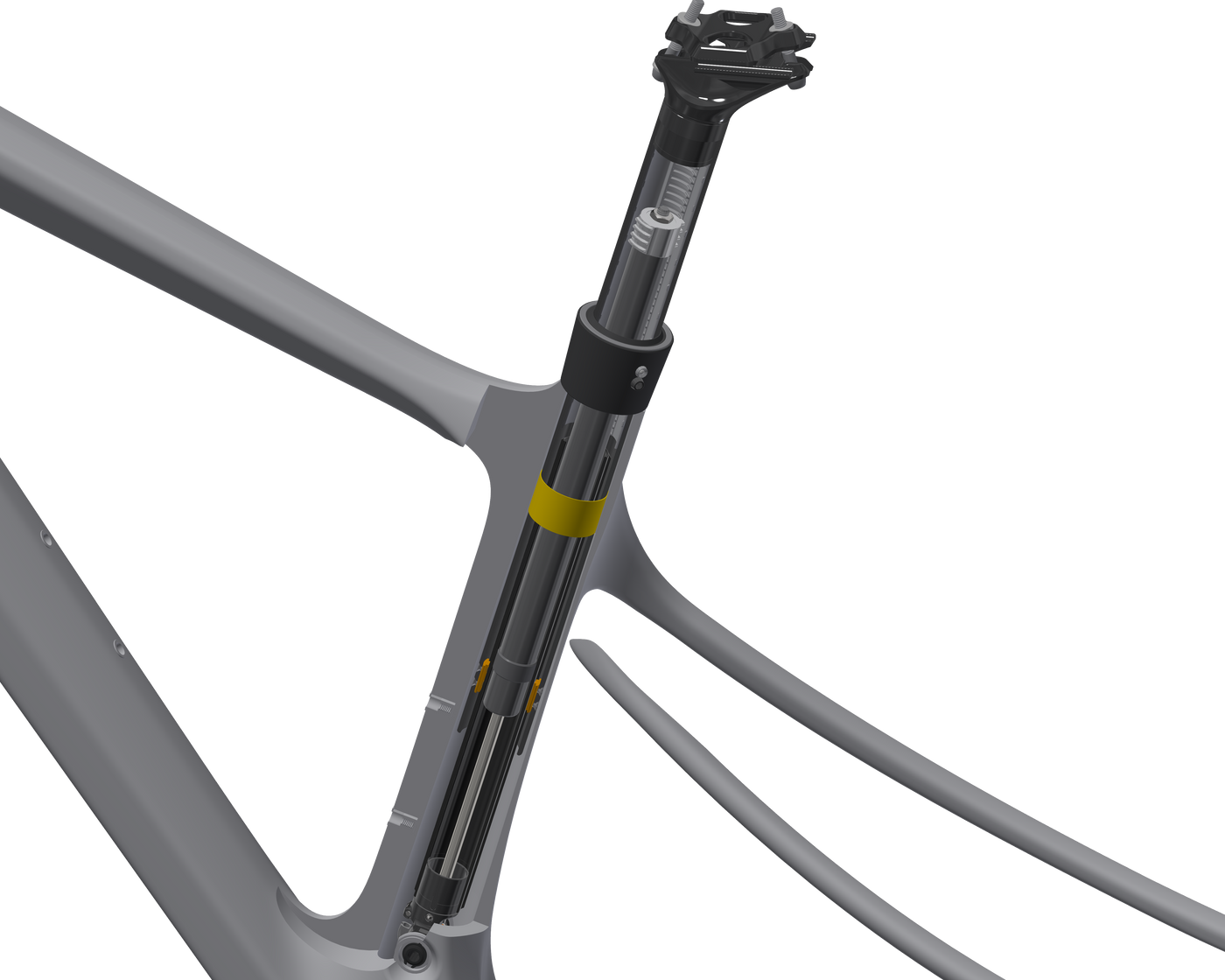

  • Bild zeigt einen offenen Querschnitt eines Ghost Lector Carbon Fahrrad Rahmens mit einer Eightpins H01 Sattelstütze.

    Stepless lowering – control in every situation

    • Hydraulic gas spring with completely stepless lowering
    • Encapsulated design protects against dirt and weather
    • Floating unit reduces bending forces
    • Maximized service life and reliability on long tours
    • Activation via cable pull – smooth operation in any position

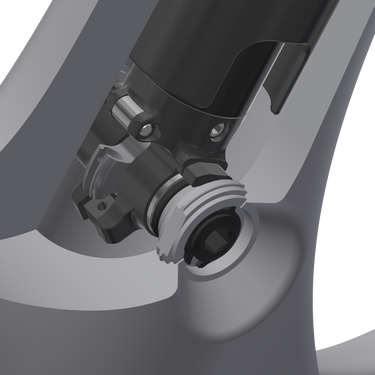

  • Bild zeigt einen Querschnitt durch einen Ghost Lector Carbon Rahmen im Bereich der Eightpins Postpins Schnittstelle zur Veranschaulichnung der Befestigung im Rahmen.

    Crisp operation – noticeably precise

    • Activation of the H01 via Bowden cable
    • Special deflection mechanism with control cam
    • Defined, repeatable trigger point
    • Crisp, high-quality haptic feedback on the remote
    • Perfect for technical terrain and fast response times

Stroke weights Saddle heights

4-S 4-M 4-L 4-XL 6-XS 6-S 6-M 6-L 6-XL 6-XXL
Hub 144 162 178 196 141 159 175 185 196 212
Gewicht mit Setback 646 gr 686 gr 696 gr 565 gr 640 gr 650 gr 686 gr 696 gr 710 gr 730 gr
Kurbellänge 165 170 175 175 165 165 170 175 175 180
Oberste Position 725 773 821 881 707 749 785 821 857 899
Einstellbandbreite 114 120 132 150 102 102 102 114 126 132
Unterste Position 611 653 689 731 605 647 683 707 731 767

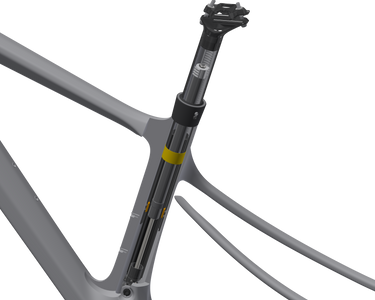

  • Bild zeigt eine Eightpins H01 Sattelstütze von der Seite, verbaut in einem Rotwild RX375.

H01 complete seat post

€290,00
incl. VAT. Shipping will be charged at checkout.
Experience the (R)Evolution seat posts and tune your bike with us Postpin Interface with one Eightpins H01.

Your advantages are:
  • Blocking: hydraulic Gas spring
  • Stroke: 141 - 212mm
  • Weight: 651 - 735gr.
  • Wider Adjustment Range - Adaptable to 99% of rider sizes
  • More stability for taller and heavier riders thanks to the larger tube diameter
  • Lower wear and therefore more durable
  • More reliable function
  • Also compatible with e-bikes
  • More beautiful appearance thanks to straight-line design
Scope of delivery:
  • seatpost Ho1 consisting of Tube and hydraulic cartridge
  • bushing
  • Outer sleeve
  • oil
  • Postpin Mounting axis
  • Adjustment ring for mounting in Frame
  • Special end cap for Bowden outer casing
  • Or Flexliner end cap for Bowden outer casing on Rotwild 750, 375 and Bulls Sonic
  • ATTENTION! None Remote lever Lever included!

Our selection of Remote lever There are levers here to find.

Further, detailed information on:
All details
